化工粉料包装机

更新时间:2020-11-04 17:13:29 点击次数:96次 作者:迈驰网络部
广州迈驰包装设备有限公司专业生产制造化工粉料包装机,石灰粉干燥剂包装机,钙粉包装机,粉料自动包装机价格,碳酸钙粉包装机等各种包装设备。广州迈驰期待与您真诚的合作,联系电话:020-39186956
广州迈驰公司介绍

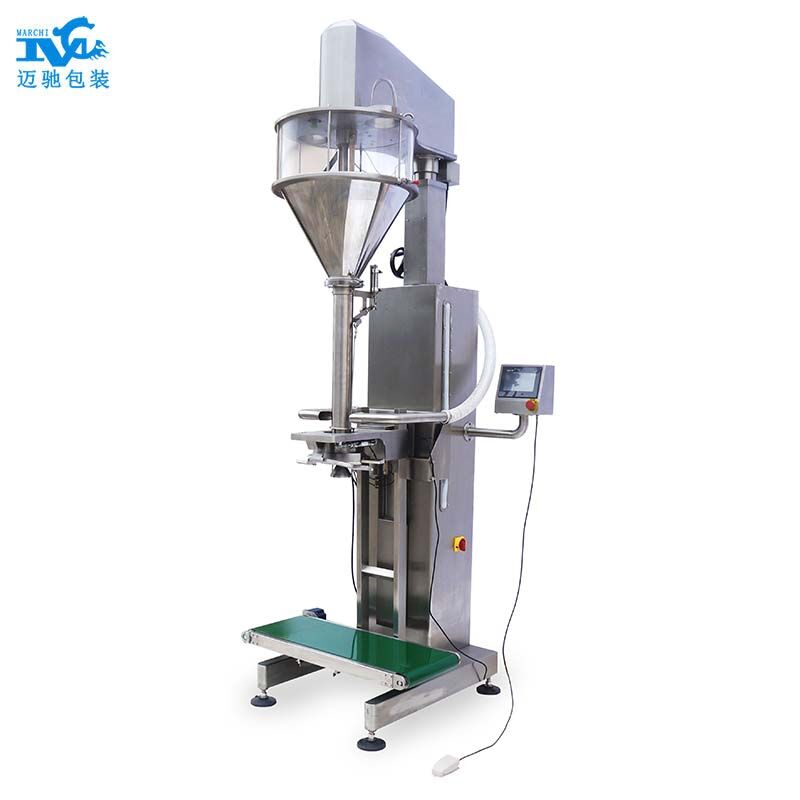

MC-DLLB大剂量半自动螺旋

MC-DLLB Large Dose Semi-Automatic Auger

设备介绍:

该系列包装机能完成称重计量、充填等工作。由于采用边称重边充填的设计,适用于包装精度要求高的,或密度不均匀的,流动性好的或者流动性差的粉末、小颗粒物料,如蛋白粉、药粉、食品添加剂、饲料添加剂、植脂末、锂电池材料:三元、钴酸锂、磷酸铁锂,兽药、葡萄糖、碳粉、染料、香精香料等。

Equipment introductions:

This series of packaging machines can accomplish the measuring, filling and other functions. The weighing and filling are carried out simultaneously, it is applicable for powder and small granule which have high-precision or non-uniform density and good fluidity or poor fluidity. such as protein powder, powder, food additives, feed additives, non-dairy fat, lithium battery materials: ternary, lithium cobalt oxide, lithium iron phosphate, veterinary drugs, glucose, toner, dyes, flavors and spices.

设备特征:

1.全不锈钢结构,组合式或开启式透明料箱,无需工具即可方便拆洗。

2.伺服马达及伺服驱动控制螺杆。

3.气动夹袋装置和托架装在重量传感器上,根据预先设定的重量进行快速和慢速充填。

4.高反应速度的称重系统,保证高精度得以实现。

5.PLC控制、触摸屏人机界面显示,操作简便。

6.两种工作方式可切换,定量式和实时称重式,定量式速度快,精度稍差一些,实时称重式,精度高,速度慢一些。

7.各种产品调整参数配方可储存,备后使用,最多储存10个配方。

8.更换螺旋附件,能够适应超细粉到小颗粒等多种物料。

Equipment features:

1.All stainless steel structure, combinational or open transparent hopper is easily to disassemble and be washed without tools.

2.Servo motor and servo drive control the screw.

3.Pneumatic bag clamping device and bracket mounted on the weight sensor, the fast or slow filling according to preset weight.

4.The high reaction speed weighing system guarantees high accuracy.

5.PLC controls the system, touch screen human-machine interface display, easy to operate.

6.Two kinds of working methods can be switched, quantitative and real-time weighing, quantitative weighing has faster speed and lower accuracy , real-time weighing has higher accuracy and slower speed.

7.Various product adjustment parameter formulas can be stored, for later use, it can store no more than 10 recipes.

8.Screw accessories can be replaced, adapting to various materials such as ultra-fine powders and tiny granule.

设备型号Model MC-DLLB-100L
包装重量Packaging weight(kg) 1~25
包装精度Packaging accuracy(kg) 5~20, ≤±0.2~0.5%, >20, ≤±0.1~0.3%
包装速度Capacity(time/min) 2~6 次/分钟
电源Power supply 3P AC208~415V  50/60Hz
压缩空气Compressed air 6kg/cm3 0.1cbm/min
整机功率Total power(kw) 2.87
整机重量Total weight(kg) 450
