全自动多列颗粒包装机

更新时间:2020-10-23 13:31:58 点击次数:255次 作者:迈驰网络部
广州迈驰包装设备有限公司专业生产制造全自动多列颗粒包装机,四边封多列包装机,多列背封粉末包装机,颗粒多列包装机等各种包装设备。广州迈驰期待与您真诚的合作,联系电话:020-39186956
广州迈驰公司介绍

全自动多列颗粒包装机

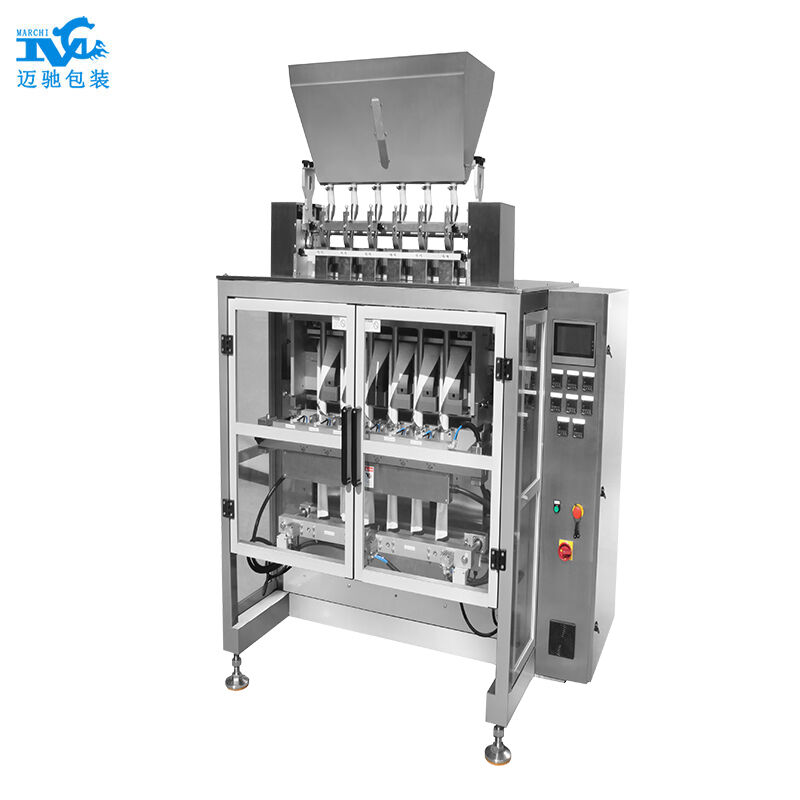

MCDL-F3立式三边封多列包装机

MCDL-F3 Vertical 3 Side Sealing Multi-lane Packaging Machine

设备介绍:

1.本自动包装机可自动完成产品多列的自动计量、自动充填、自动制袋(可印字)、封口、定包切断等功能。

2.采用先进的技术,人性化设计,日本“松下”PLC+5.7”触摸屏控制系统,自动化程度高。

3.故障自报警、自停机、自诊断,使用安全简单,维护快速,自动显示包装数量,可方便的统计出机器的工作量。

4.采用热封工作原理,电机控制拉膜,拉袋快速平稳。

5.采用高灵敏度光电感应开关,可自动追踪定位印刷光标,包装有色标的包装材料时,可获得完整的商标图案。

6.采用一体化撑框架,调节更加方便。

7.整机由304不锈钢和铝合金制成(符合GMP标准)。

Equipment introductions:

1.The machine can automatically complete multi-lane products measuring, feeding, filling and bag forming(date code printed), bag sealing and cutting.

2. Adopt advanced technology, humanized design, Japanese "Panasonic" PLC + 5.7"touch screen controls system, high degree of automation.

3.Automatic alarming, stopping and self-diagnosing when failure, can be viewed directly from the screen. It is safe, easy-using, quick maintain, automatically display the number of bags, and can easily count the workload of the machine.

4. Using the working principle of heat sealing , the motor controls film-pulling and the Capacity of stick -pulling is fast and stable.

5. With high sensitivity of photoelectric switch , the printing cursor can be automatically tracked and positioned, and the complete trademark pattern can be obtained when using the packaging material which has color mark.

6. Adopt an integrated framework makes adjustment more convenient.

7.The whole machine is made of 304 stainless steel and aluminum alloy (comply with the GMP standards).

设备参数:

Equipment parameters:

设备型号Model MCDL190F3 MCDL480F3 MCDL800F3
袋长Sachet length(mm) 50~120 50~120 50~120
带宽Sachet width(mm) 30~47 40~60 40~66
膜宽Film width(mm) Max190 Max480 Max800
列数 Lanes 2 4~8 6~10
包装速度Capacity (cutting/min) 35~50切/分 35~50切/分 35~45切/分
封口尺寸Sealing size(mm) 背封5~10/横封5~10(可定制)Back sealing: 5~10/ horizontal sealing: 10~20(can be customized)
电源Power supply 220v, 50Hz 3.5kw 220V, 50HZ 5.5kw 220v, 50Hz 7.5kw
压缩空气Compressed air 0.6~0.8MPa M³/min 0.6~0.8MPa M³/min 0.6~0.8MPa M³/min
拉袋方式Sachet pulling mode 变频电机拉袋Inverter motor sachet pulling 伺服拉袋Servo sachet pulling 伺服拉袋Servo sachet pulling
切断方式Cutting mode 平切、齿形切、圆角切、连包切等等Flat cutting, zigzag cutting, rounded cutting, multi-sachet pulling cutting, etc.
设备尺寸 Dimension L × W × H 825×107×1576 1413×1674×2000 1798×1744×2000
